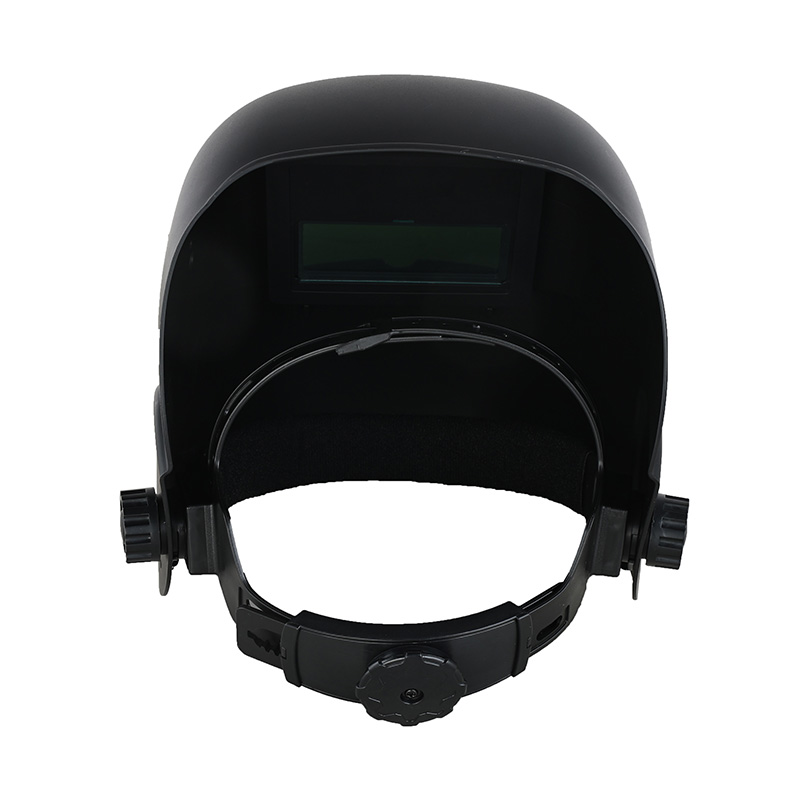

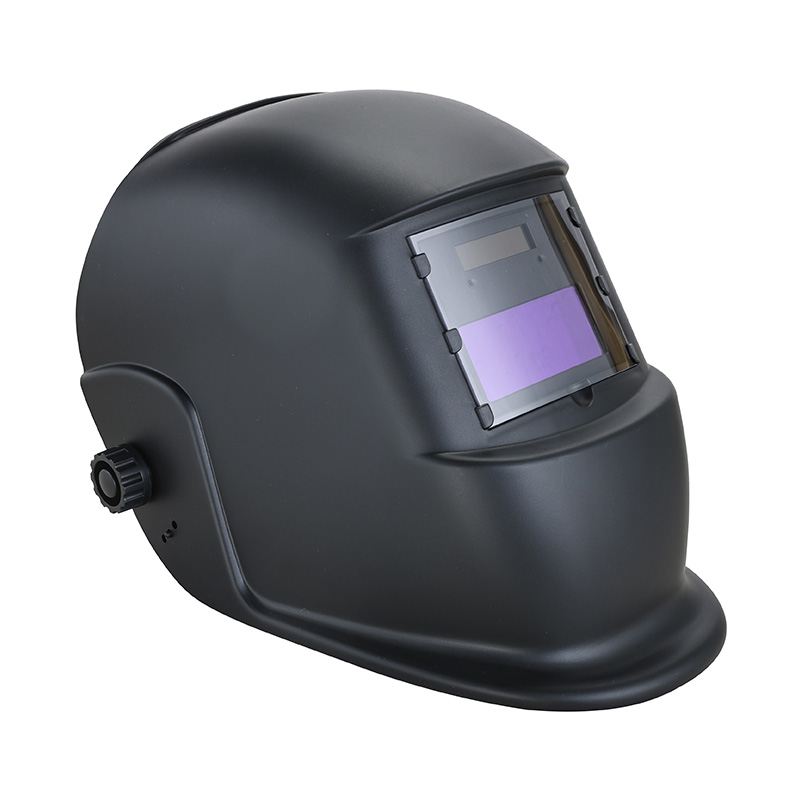

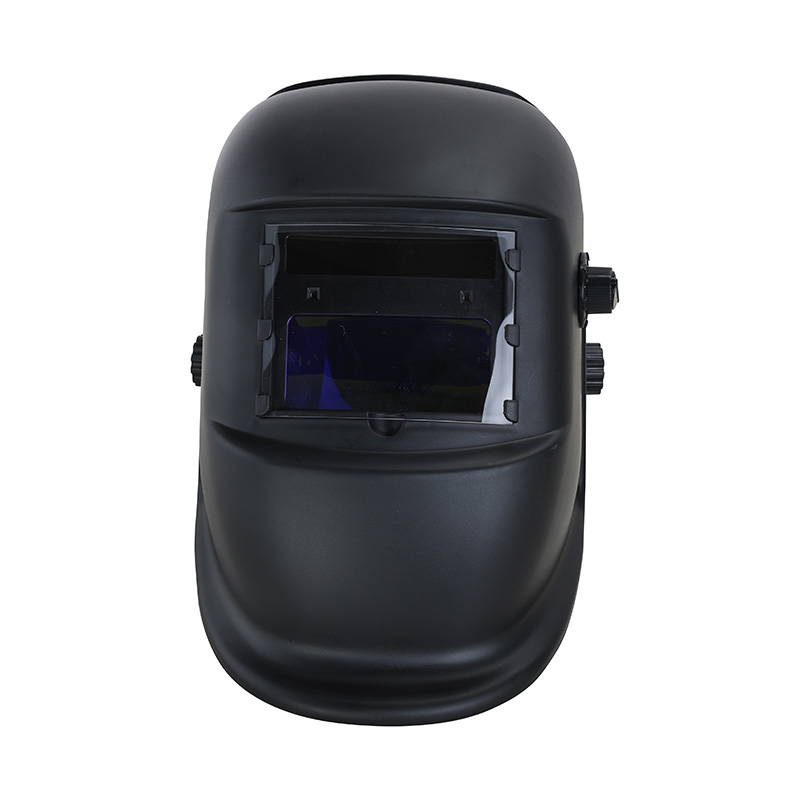

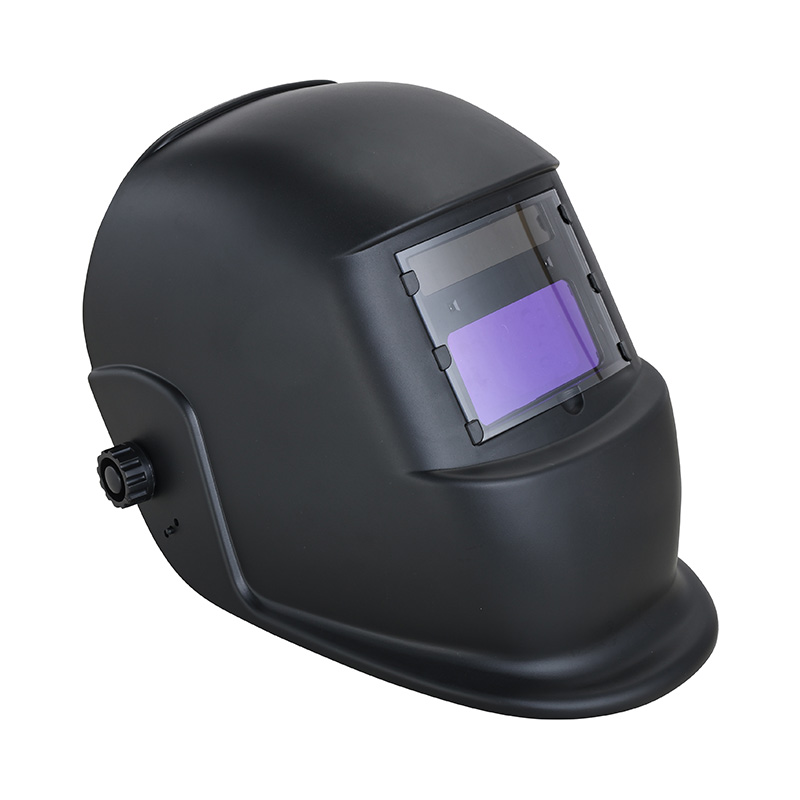

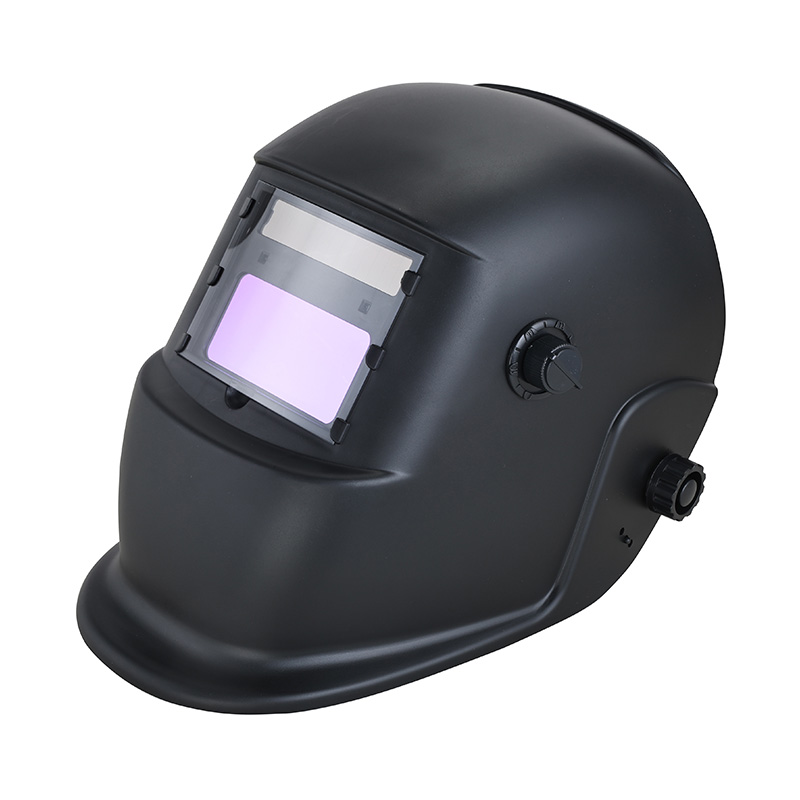

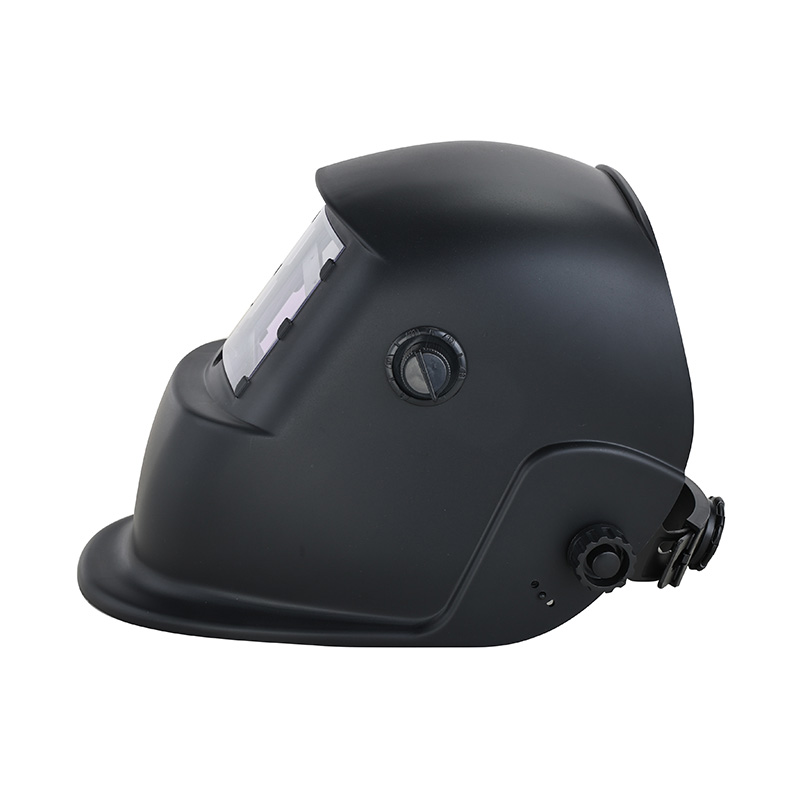

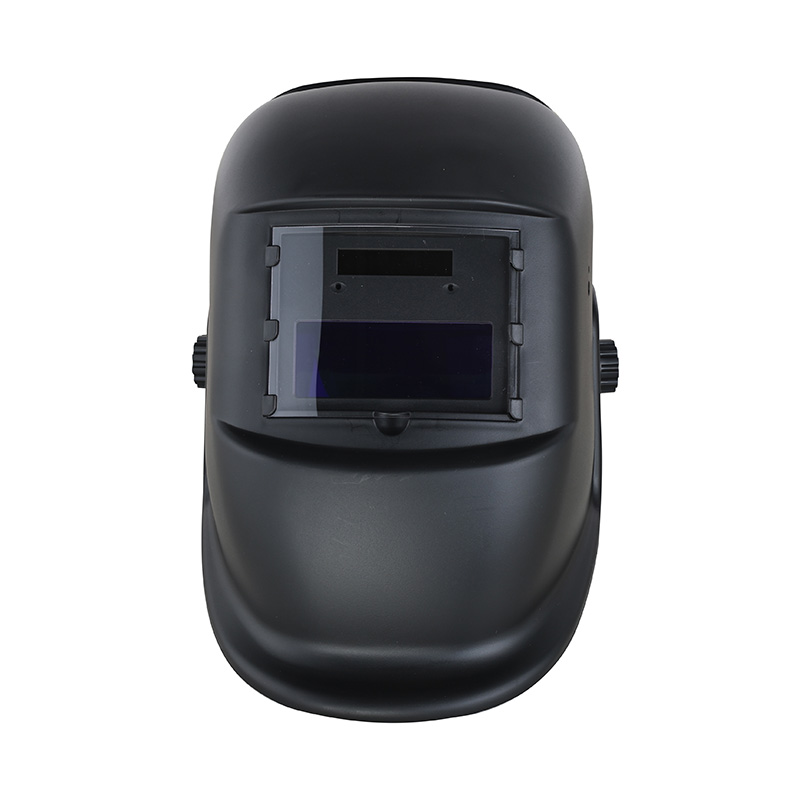

Professional Auto-Darkening Welding Helmet RLM 600

Key Selling Points

1. Auto-Darkening Feature
The RLM 600 Auto-Darkening Welding Helmet is equipped with an advanced auto-darkening lens that adjusts its shade automatically in response to light intensity changes.
- Efficient Adjustment: When the welding arc is active, the lens darkens to protect the welder’s eyes, and it lightens once the arc stops. This feature helps reduce eye fatigue and maintains comfort during extended welding sessions.
- Improved Workflow: Welders no longer need to constantly raise and lower their Auto-Darkening Welding Helmets, which streamlines the process and enhances efficiency.

2. Optical Class: 1/1/1/2
The RLM 600L boasts an exceptional optical class rating of 1/1/1/2:
- Optical Clarity (1): The lens offers outstanding visual clarity with minimal distortion, ensuring a sharp and clear view of the workpiece.
- Light Diffusion (1): The Auto-Darkening Welding Helmet distributes light evenly, improving visual accuracy and reducing glare.
- Lens Homogeneity (1): Provides uniform performance across the viewing area, delivering a clear and consistent field of vision.
- Angle Dependency (2): While slightly less optimal at extreme angles, the Auto-Darkening Welding Helmet still provides excellent clarity and performance for most welding tasks.

3. Dual ARC Sensors
The RLM 600 features two highly sensitive ARC sensors that enhance the Auto-Darkening Welding Helmet’s responsiveness.
- Immediate Detection: These sensors quickly detect changes in light intensity, ensuring the lens responds instantaneously to the welding arc. This consistent protection is crucial in dynamic environments where precision and speed are essential.

PREV：No next articleNEXT：Professional Auto-Darkening Welding Helmet RLM 700
  • Features
  • Lens Group Specifications
  • Optional Lenses
  • Contact us

  • Additional Features

    1. Power Indicator and Integrated Control Panel
    The RLM 600L is equipped with a power indicator and an integrated control panel for user convenience.
    - Battery Management: The power indicator alerts users to the battery status, helping prevent unexpected power failures during welding.
    - Convenient Adjustments: The control panel allows for easy modifications to light and shade levels, sensitivity, and delay times, all without the need to remove the Auto-Darkening Welding Helmet.

    2. High-Definition Visuals and Liquid Crystal Filter
    The Auto-Darkening Welding Helmet offers high-definition (HD) visuals to improve clarity and reduce eye strain.
    - Enhanced Color Perception: The liquid crystal filter enhances color contrast and detail, which is particularly beneficial for complex welding tasks that require precise visibility.

    3. Solar Panel for Power Efficiency
    The RLM 600L features a built-in solar panel that extends battery life and reduces the need for frequent replacements.
    - Eco-Friendly: The solar-powered design is both convenient and environmentally friendly, ensuring continuous functionality even during prolonged use.

    Product Features

    Product Features of Auto-Darkening Welding Helmet RLM 600L

    1. Viewing Area: 93mm x 43mm or 100mm x 50mm
       - Lens Assemblies: The RLM 600 offers options for different viewing areas. Choose between RL-500H and RL-500J for a 93mm x 43mm viewing area, or RL-500L for a larger 100mm x 50mm viewing area. The expanded viewing area enhances visibility and provides a better view of the workpiece and surroundings.

    2. Light and Dark States
       - Versatile Shade Options: The helmet features a light state of DIN 4 for non-welding tasks and adjustable dark states ranging from DIN 9 to DIN 13 for welding. This range ensures effective protection against intense arc light and harmful UV/IR radiation.
       - UV/IR Protection: The helmet provides full UV and IR protection, rated at DIN 13, ensuring comprehensive safety for the welder’s eyes during all welding activities.

    3. Adjustable Sensitivity and Delay Time
       - Customization: The RLM 600L allows for adjustment of sensitivity and delay time settings. Sensitivity can be fine-tuned to detect weaker arcs, making the helmet suitable for low-current welding. The delay time is adjustable between 0.1 to 0.8 seconds, ensuring that the lens remains dark briefly after the arc light disappears, preventing eye strain during transitions.

    4. Industry Standards Compliance
       - Standards Compliance: The Auto-Darkening Welding Helmet meets or exceeds ANSI Z87.1, CSA Z94.3 standards and is CE certified, ensuring it adheres to global safety regulations.

    5. Comfortable Wear
       - Lightweight and Adjustable: The helmet is designed to be lightweight, with an adjustable headgear that ensures a comfortable fit. This design allows for extended use without discomfort, making it suitable for prolonged welding sessions.
